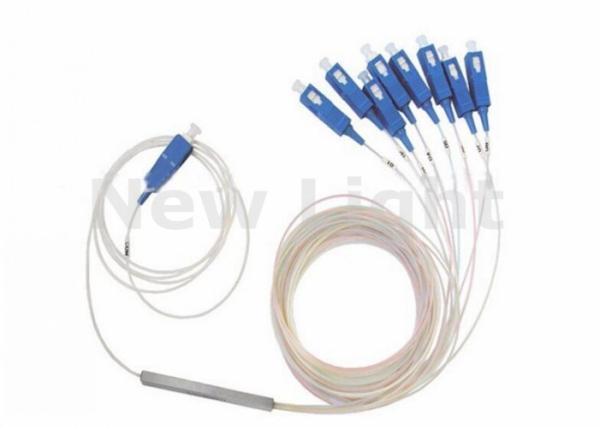

SC UPC 1X8 PLC Single Mode Fiber Optic Coupler Splitter Steel Tube Type For FTTH

Name: SC UPC 1X8 PLC Single Mode Fiber Optic Coupler Splitter Steel Tube Type For FTTH
Brand: New Light
Price: 1 USD

Brand Name : New Light

Certification : ISO ,ROSH

Place of Origin : China

MOQ : 10

Price : 1~30

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 1000000

Packaging Details : export packing

Color : Grey cable , Blue connector

Connector type : SC

Polish : UPC

Cable diameter : 0.9mm

Mode : Single mode

OEM : Available

Delivery Time : 15 working days

Contact Now

SC UPC 1X8 PLC Singlemode Fiber Optical splitter FTTH PLC Steel tube type

Specification:

1xN PLC Splitter Specification
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or as customers' order
Port Configuration	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Return Loss (dB)			55/50
Operating Temperature			-40~+85
Directivity (dB)			≥ 55
Storage Temperature			-40~+85

Feature:

*Excellent Mechanical,Small Size
*High Reliability
*Low insertion Loss and low Polarization Dependent loss
*High channel counts
*Excellent Environmental Stability and Widely Used

Application:

*FTTx Deployments(GPON/BPON/EPON)
*Cable television (CATV)
*Local area networks (LAN)
*Test equipment
*Passive optical networks(PON)

SC UPC 1X8 PLC Single Mode Fiber Optic Coupler Splitter Steel Tube Type For FTTH
