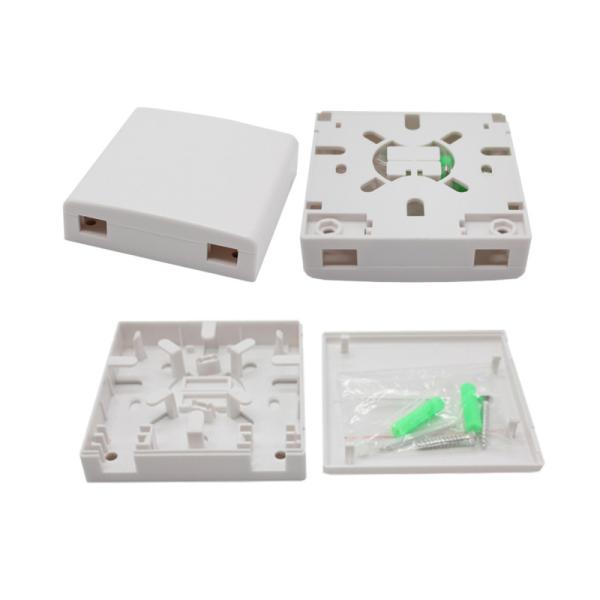

SC optical fiber termination box 2 port ftth distribution terminal box
Description
The SC Fiber Optic Socket employs a compact plug-in design, combines a modern design concept, adopts imported plastic, is of a graceful appearance and applicable for FTTH, FTTO and FTTD, etc., and allows easy use in different installation environments.

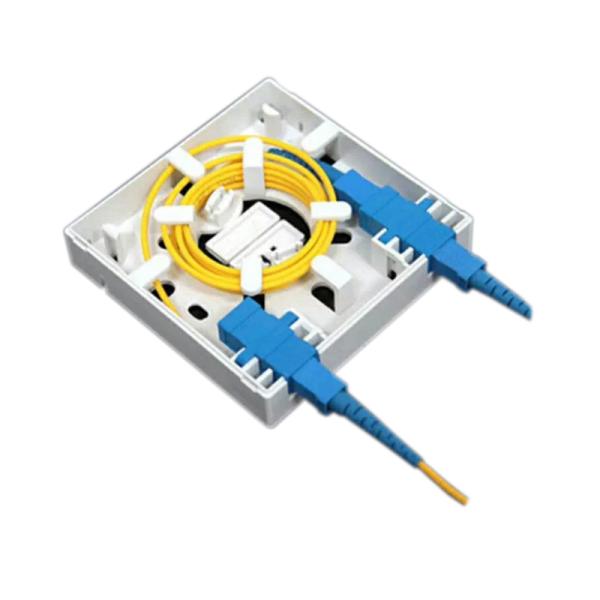

The clasp design of the cover has greatly reduced the installation strength. It is very thin and matches with other A86 panels in homes, and also meet the open or concealed cabling for optical cables. Coordinating with FC strip-type optical adaptor, it generates more options in term of fiber interfaces for users, all SC, LC and SC/FC are usable. In addition, the big-diametered wrapping post in the box protects radically in an omnibearing way the optical fiber in the box.
Applications
Wall mounting installation
Suitable for 2*3mm FTTH Drop Cable
Features:
Standard 86 type panel, small size and simple operation
Large arc-shaped winding column to avoid the potential damage risks
UL94 V1 flame retardance complied (UL94 V0 is available upon request)
Multi-function optical fiber socket for a variety of cables and multi-mode access
Flexible termination methods: splicing + pigtail, mechanical splice + pigtail, fast connector on site.
Advantage:
Economic design
Ability to allow cables to enter from both sides of the unit
Removable cover for easy access
compact,low profile, wall mounted unit used for small and large business premise
Technical Data:
Number of input cable ports:1
Maximum input cable diameter(mm):5mm
Maximum Capacity: 2 fibres
Maximum no. of customer feeds: 2 patch cords
Dimension: 86 x 86 x 23mm
Material:ABS or PC
FTTH drop cable or indoor cable can be used.
| Adapter Capacity | 02 Adapters |
| Splice Trays | / |
| Splice Capacity | 02 Splices |
| Ports | 1 Input Port / 4 Output Ports |
| Material | PC/ABS |
| Height | 86 mm |
| Width | 86 mm |
| Depth | 19mm |
| Color | White |
| Port Capacity | 2 ports, each port for 1 cable with max 10mm |
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Parameters:
| Model | Capacity | Type | XX: Adapter | XX: Pigtail |
| FFS | 2 | B | SC: SC/UPC | SC: SC/UPC |
| AS: SC/APC | AS: SC/APC |
| LC: LC/UPC | LC: LC/UPC |
| AL: LC/APC | AL: LC/APC |
